RCBO 1PPNS 40A C 30MA A 230V
Rexel Part:
SCDA9D11840
Mfr Number:
A9D11840
Barcode:
3606480558658
Please LogIn
To view pricing, availability and special offers, click the button below and login.
Contact your local branch for availability.
EAC
Min: 1 EAC
Technical Documents
Technical Documents
Product Details
Product Details
This Acti9 iC60 is a modular residual current breaker with overcurrent protection RCBO It is a 1P+N circuit breaker with 1 protected pole - 40A In rated current and C tripping curve The earth leakage protection class is A typ

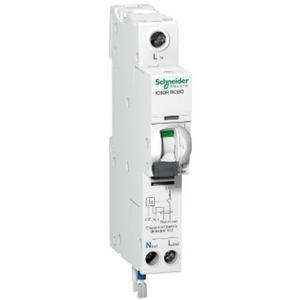

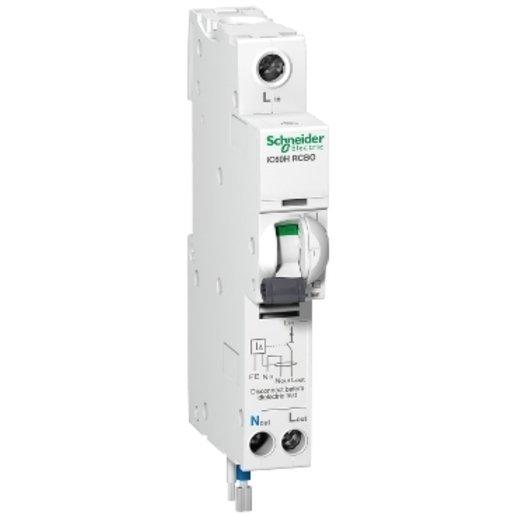

This Acti9 iC60 is a modular residual current breaker with overcurrent protection (RCBO). It is a 1P+N circuit breaker with 1 protected pole, 40A In rated current and C tripping curve. The earth leakage protection class is A type with a sensitivity of 30mA. The earth-leakage protection time delay is instantaneous. The Icn rated short circuit breaking capacity is up to 10000A according IEC 61009-2-2 standard. Its unique Visitrip indicator reduces intervention time by showing the faulty circuit. Its Visisafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. Its fast closing mechanism independent of manual operation improves its service life. This product is compliant with BS EN 61009-1 and IEC 61009-2-2 standards. It has an electrical endurance going up to 5000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 400VAC. The Uimp rated impulse withstand voltage is 4kV. The frequency is 50Hz. It is DIN rail mountable. The width in 9mm pitches is 2. The product color is white (RAL9003). The dimensions are (W) 18mm x (H) 110mm x (D) 77.5mm. The weight is 205g. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is from -15°C to 60°C. The storage temperature is from -40°C to 85°C.
This Acti9 iC60 is a modular residual current breaker with overcurrent protection (RCBO). It is a 1P+N circuit breaker with 1 protected pole, 40A In rated current and C tripping curve. The earth leakage protection class is A type with a sensitivity of 30mA. The earth-leakage protection time delay is instantaneous. The Icn rated short circuit breaking capacity is up to 10000A according IEC 61009-2-2 standard. Its unique Visitrip indicator reduces intervention time by showing the faulty circuit. Its Visisafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. Its fast closing mechanism independent of manual operation improves its service life. This product is compliant with BS EN 61009-1 and IEC 61009-2-2 standards. It has an electrical endurance going up to 5000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 400VAC. The Uimp rated impulse withstand voltage is 4kV. The frequency is 50Hz. It is DIN rail mountable. The width in 9mm pitches is 2. The product color is white (RAL9003). The dimensions are (W) 18mm x (H) 110mm x (D) 77.5mm. The weight is 205g. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is from -15°C to 60°C. The storage temperature is from -40°C to 85°C.
Not the product you were looking for? Check out other items in the Residual Current/Earth leakage circuit breaker (RCBO,RCD/MCB)
Technical Specifications
Technical Specifications
Does this product not have all the specifications you are looking for?
Please don't hesitate to conduct a search for other products with similar technical specifications.
To find similar products, please select the desired specifications from the white boxes below.
To help with your selection, try selecting the Select All button below then deselect any unwanted specification.
Please select at least 1 attribute to search.
Residual Current/Earth leakage circuit breaker (RCBO,RCD/MCB) |
|
| Number of poles (total) |
2
|
|---|---|
| Number of protected poles |
1
|
| Rated voltage |
240 V
|
| Rated insulation voltage Ui |
400 V
|
| Rated impulse withstand voltage Uimp |
4 kV
|
| Rated current |
40 A
|
| Rated fault current |
30 A
|
| Leakage current type |
A
|
| Current limiting class |
3
|
| Rated short-circuit breaking capacity according to IEC 60947-2 |
10 kA
|
| Rated short-circuit breaking capacity Icn according to EN 61009-1 |
10 kA
|
| Disconnection characteristic |
Undelayed
|
| Surge current capacity |
0.25 kA
|
| Voltage type |
AC
|
| Frequency |
50 Hz
|
|---|---|
| Release characteristic |
C
|
| Concurrently switching neutral conductor |
Yes
|
| With interlocking device |
No
|
| Over voltage category |
4
|
| Pollution degree |
3
|
| Ambient temperature during operating |
-15 °C
|
| Width in number of modular spacings |
1
|
| Built-in depth |
45 mm
|
| Anti-nuisance tripping version |
No
|
| Degree of protection (IP) |
IP20
|
| Connectable conductor cross section solid-core |
1 mm²
|
| Connectable conductor cross section multi-wired |
1 mm²
|
| Model |
Acti 9 iC60 RCBO
|
