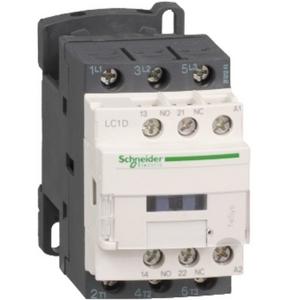

CONTACTOR 15KW 3P 1NO+1NC 415VAC
Rexel Part:
SCDLC1D32N7
Mfr Number:
LC1D32N7
Barcode:
3389110351118
Please LogIn
To view pricing, availability and special offers, click the button below and login.
Contact your local branch for availability.
Supplier Packages :
Package options may not always be available
Package Options
Number of items
1 Carton
20 EAC
EAC
Min: 1 EAC
Technical Documents
Technical Documents
Product Details
Product Details
All contactors are sourced from leading Australian suppliers with an impressive range to suit local conditions and requirements. They all have the relevant approvals and meet all applicable Australian standards.
TeSys D contactor, 3 poles (3NO), for motor control applications up to 32A/690V AC-3 (15kW@400V). It provides a 415V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
TeSys D contactor, 3 poles (3NO), for motor control applications up to 32A/690V AC-3 (15kW@400V). It provides a 415V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Not the product you were looking for? Check out other items in the Power contactor AC switching
Technical Specifications
Technical Specifications
Does this product not have all the specifications you are looking for?
Please don't hesitate to conduct a search for other products with similar technical specifications.
To find similar products, please select the desired specifications from the white boxes below.
To help with your selection, try selecting the Select All button below then deselect any unwanted specification.
Please select at least 1 attribute to search.
Power contactor AC switching |
|
| Rated control supply voltage AC 50 Hz |
415 V
|
|---|---|
| Rated control supply voltage AC 60 Hz |
415 V
|
| Voltage type for actuating |
AC
|
| Number of normally closed contacts as main contact |
0
|
| Number of normally open contacts as main contact |
3
|
| Type of electrical connection of main circuit |
Screw connection
|
| Rated operation current Ie at AC-1, 400 V |
50 A
|
| Rated operation current Ie at AC-3, 400 V |
32 A
|
| Rated operation power at AC-3, 400 V |
15 kW
|
|---|---|
| Rated operation current Ie at AC-4, 400 V |
18 A
|
| Rated operation power at AC-4, 400 V |
7.5 kW
|
| Number of auxiliary contacts as normally open contact |
1
|
| Number of auxiliary contacts as normally closed contact |
1
|
| Modular version |
No
|
| Number of poles (total) |
3
|
